500W High Voltage DC Power Supply

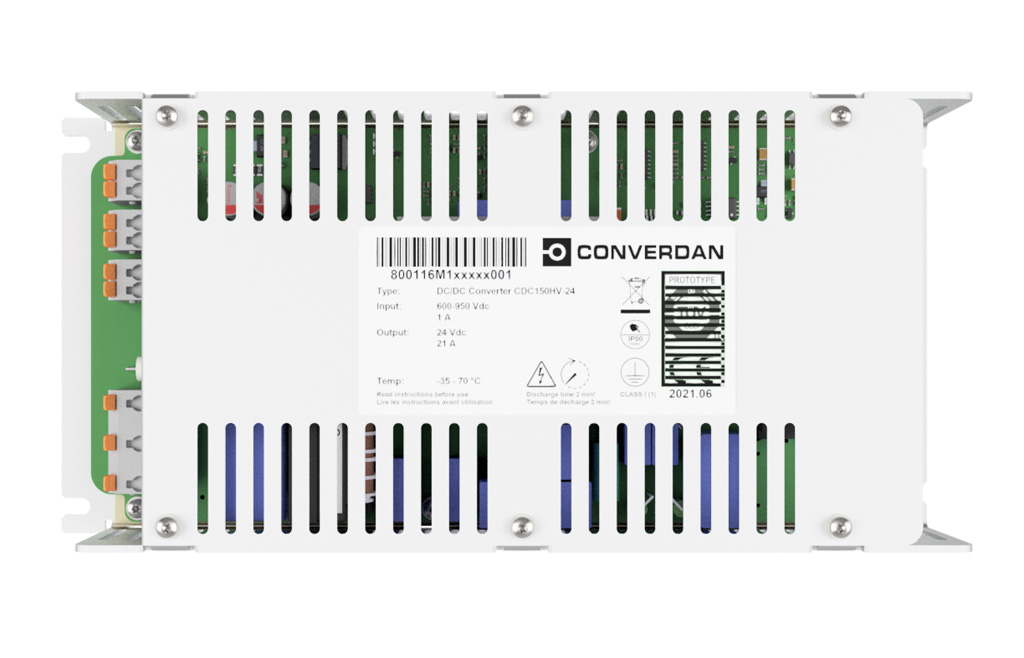

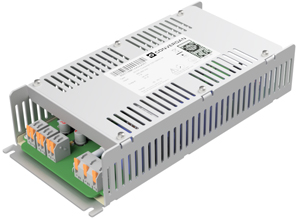

The CDC150HV-24 is a high-performance DC/DC converter featuring a single galvanically isolated 24 Vdc output derived from a high-voltage input of up to 1000 Vdc.
The CDC150HV-24 is suitable for use as an auxiliary power supply in applications that require a 24 Vdc supply to be generated from the high-voltage DC-bus rail or DC micro grid, that is typically found in electric vehicle chargers, energy storage, renewable energy and industrial power systems.
The CDC150HV-24 has a very high efficiency that allows for a compact and fan-less design, capable of operating at elevated ambient temperatures while still maintaining very high reliability and long-life expectancy.
Up to 10 units can be paralleled via a simple 1-wire load share bus for a maximum system power level of 5 kW. The load is shared equally among all active units connected to the load sharing bus. The master unit controlling the load sharing is automatically selected among the active units feeding the load and the master role is automatically passed on to a different unit, should the master encounter a fault. This feature is advantageous over other load sharing methods, especially in high availability applications.
The power density of the CDC150HV-24 is very good with an output power level of 500 W in a compact enclosure size of just 258x124x61 mm.
Features
- 600-950 DC Input Operating Voltage
- Galvanically Isolated Single 24Vdc Output
- 500W Output Power in Compact Size
- Parallel Operation up to 5kW
- Very High Efficiency
- Robust Design for Harsh Environment
- Advanced Protection Features
- EMI Filter Built In
Block Diagram
Typical/Recommended Operating Conditions
Parameter
Input Voltage (POS-NEG)
Input Voltage (POS-NEG), derated power *1
Input Current
Output DC Voltage (incl. tolerances)
Output Load Current Range
Peak Effeciency
Isolation Category (Input-Output)
Full Load Operating Temperature (Ambient)*2
Derated Load Operating Temperature (Ambient)*2
Dimensions (L x W x H)
Weight
Min
600
450
–
23.60
0
–
.
-35
-35
.
–
Max
950
950
1
24.50
21
96
Reinforced Isolation
70
80
258 x 124 x 61
1
Unit
Vdc
Vdc
Adc
Vcd
Acd
%
.
°C
°C
mm
kg
Note 1: Derate maximum output power by 2W/V for input voltages below 600Vdc.
Note 2: Minimum of 1 m/s air flow across unit is required.
Normative
Approvals
CE Approval Directives:
- 2014/30/EU (Electromagnetic Compatibility (EMC) Directive)
- 2014/35/EU (Low Voltage Directive)
- 2011/65/EU (RoHS Directive)
TÜV SÜD approval:
- Certificate no. U10 112882 0007 Rev. 00
Safety
Tested according to:
- IEC/EN 61010-1:2010
- IEC/EN 61010-1:2010/AMD1:2016
- IEC/EN 61010-2-201:2017
- UL 61010-1:2012/R:2019-07
- CSA C22.2 No. 61010-1:2012/A1:2018-11
- UL 61010-2-201:2018
- CSA C22.2 No. 61010-2-201:2018
EMC
Tested according to:
- IEC61000-6-2, immunity (industrial environments)
- IEC61000-6-3, emission (residential, commercial, and light-industrial environments)
For complete set of specifications, please request the datasheet below.
